Home > Product >  IP Terminals >  P-200N IP Phone

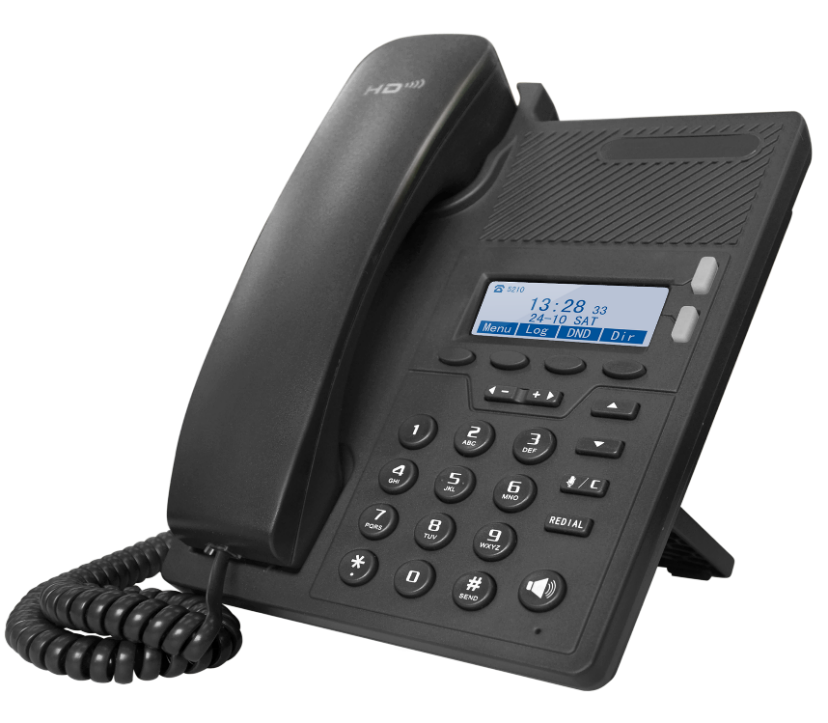

P-200N IP Phone

    Need an Economic and High CP value IP Telephone with HD voice? The P-200N is highly designed an economic phone that can be used as an integrated or a standalone phone. And it is a business class SIP phone with an integrated dual Ethernet switch, G.722 codec support, SRTP, Support 2 SIP accounts, and Headset Interface.

    The P-200N IP Phones are a Business Grade IP handset with a huge range of features and flexibility. The P-210 IP was designed and built for Enterprise Businesses with its modern design and ergonomic feel.



PHONE FEATURES

  • Vxworks OS
  • Support SIP2.0 (RFC3261) and correlative RFCs
  • SIP support 2 SIP servers, and backup SIP proxy servers
  • Supports SIP UDP / TCP/ TLS
  • SIP support SIP domain, SIP authentication (none, basic, MD5) , DNS name of server, Peer to Peer / IP Call


DISPLAY & KEY FEATURES

  • Display Resolution: 128x64
  • Large dot matrix LCD display and soft keys make user easier to use
  • 2 physical key for 2 SIP account
  • 5 no.s soft keys programmable
  • Supports RJ-9 headset
  • Multi languages displayed


AUDIO FEATURES

  • HD voice: HD handset
  • Codec: G.711A/u, G.7231 high/low, G.729AB, G.722, G.726-32
  • DTMF: In-band, RFC 2833 and SIP INFO
  • Full duplex hands- free speaker phone with acoustic echo cancellation
  • Voice Activity Detection (VAD)
  • Comfort Noise Generation (CNG)
  • Background noise suppression
  • Adaptive jitter buffers
  • Packet loss concealment
  • SRTP
  • mute


ADVANCED FEATURES

  • Call forwarding (busy/ no answer/ always)
  • Call transfer ( unattended/ attended/ semi-attended )
  • Call holding
  • Call waiting
  • 3 way call conference
  • Capable of 10 way conversation
  • BLF list
  • Join call
  • Call pickup
  • Call park
  • Redial
  • Call back
  • Call completion
  • Hot desking
  • Auto redial
  • Predial
  • SIP messaging , MWI
  • Flexible dial plan
  • Barring function for outgoing calls
  • Do not disturb
  • Auto answer
  • Caller ID display
  • CLIR(rejects anonymous calls)
  • CLIP(to make an anonymous call)
  • Dial without registration
  • Call logs with missed calls/ incoming calls/ outgoing calls. Each support 300 records
  • Phonebook 800 records
  • Speed Dial (abbreviated dialing)
  • Hotline/Warm-line
  • Call rejection
  • Black List/ White List
  • Intercom/Intercom barge
  • Password dial, DTMF hidden
  • Action URL/ active URI
  • Voice codec setting for each SIP line
  • Multicast
  • LDAP, XML phonebook
  • Web dial
  • Keypad lock, Emergency call


NETWORKING / SECURITY FEATURES

  • WAN / LAN:10/100M Ethernet ports
  • Bridge mode and route
  • PPPoE for xDSL
  • 802.3af POE(optional)
  • VLAN(Voice VLAN/Data VLAN)
  • 802.1X
  • NAT (NAPT)
  • NAT transverse :Support STUN client
  • DHCP client on WAN/ DHCP server on LAN
  • Main DNS and secondary DNS server
  • DNS Relay
  • SNTP Client
  • Firewall and DMZ
  • Web management access restricted
  • VPN(L2TP/Open VPN)
  • ping, Trace route, telnet


MAINTENANCE & MANAGEMENT

  • WEB, telnet and LCD menu management
  • Management with different account right
  • Recover firmware and factory reset through POST mode
  • Upgrade firmware via HTTP, HTTPS, FTP, TFTP
  • DHCP option66 and custom option for auto provisioning
  • Auto Provisioning to upgrade configuration file with AES(256) encryption
  • TR-069 and Syslog


PHYSICAL FEATURES

  • Adapter Input: AC 100-240V
  • Adapter Output: DC 5V/1A
  • WAN Port -10/100 BASE-T RJ-45 for LAN
  • LAN Port-10/100 BASE-T RJ-45 for PC
  • Headset : RJ9
  • Power consumption: IDLE: 2.5W Active: 2.8W
  • Display Resolution: 128x64 pixels
  • Operation Temperature: 0〜40℃
  • Relative Humidity: 10〜95%
  • Main Chipset : Broadcom
  • SDRAM: 16MB
  • FLASH: 4MB
  • Net Weight: 0.62kg
  • Dimension: 213x157x39 mm
